Master Link - Weld
Master Link - Weld
The drop forged Master Link was designed for easy creation of custom slings. The link features a 1″ to 3″ gap to enable the addition of chain, links, thimbles. etc. Before creating any assembly, be sure to determine the weight of the load and choose components with suitable working load limits.

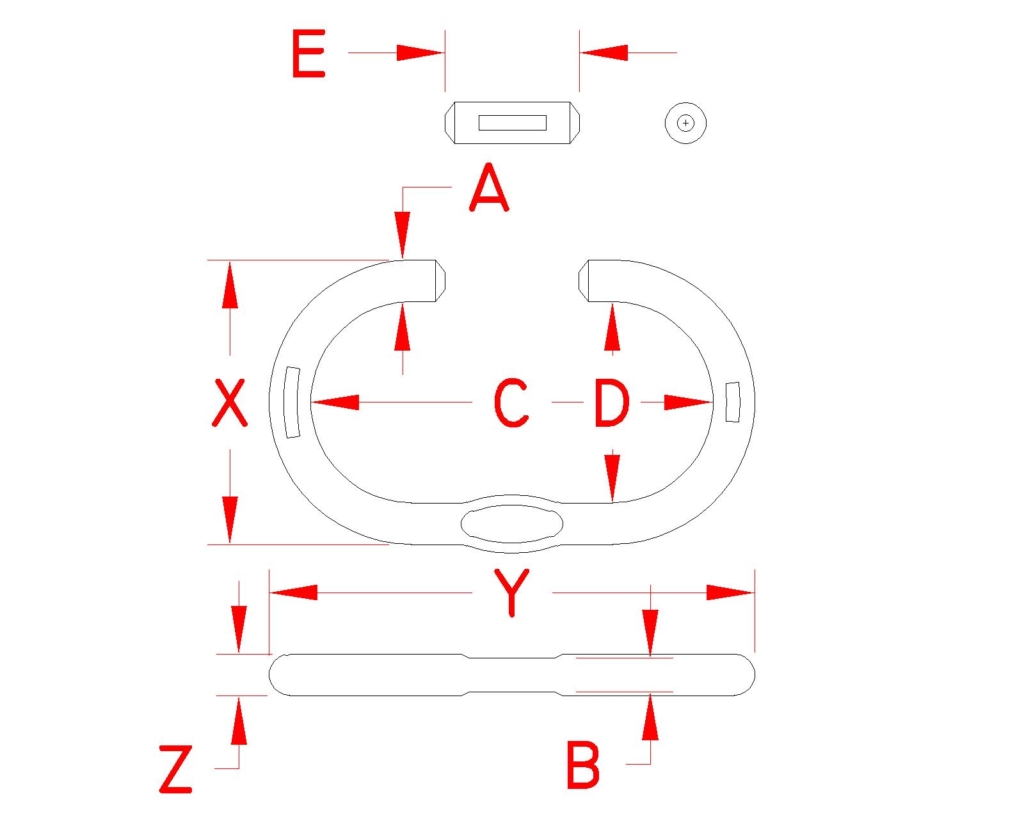

| ITEM | A(size) | B | C | D | E | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0650-W016 | 5/8" | 0.50" | 6.00" | 3.00" | 2.00" | 4.25" | 7.25" | 0.64" | 2,800 | 1.60 | $115.91 |
|
|
| S0650-W032 | 1-1/4" | 0.94" | 8.75" | 4.38" | 3.00" | 7.00" | 11.25" | 1.27" | 11,800 | 9.00 | $554.04 |
|
|
| S0650-W010 | 3/8" | 0.28" | 3.00" | 1.50" | 1.00" | 2.25" | 3.75" | 0.38" | 1,500 | 0.28 | $28.02 |
|
|
| S0650-W013 | 1/2" | 0.38" | 5.00" | 2.50" | 1.75" | 3.50" | 6.00" | 0.56" | 2,000 | 0.91 | $63.79 |
|
|
| S0650-W020 | 3/4" | 0.56" | 6.50" | 3.25" | 2.38" | 4.75" | 8.00" | 0.75" | 3,750 | 2.35 | $181.17 |
|
|
| S0650-W025 | 1" | 0.75" | 7.00" | 3.50" | 2.50" | 5.50" | 9.00" | 1.00" | 8,000 | 4.61 | $291.93 |
|
