Unwelded Eye Bolt
Unwelded Eye Bolt

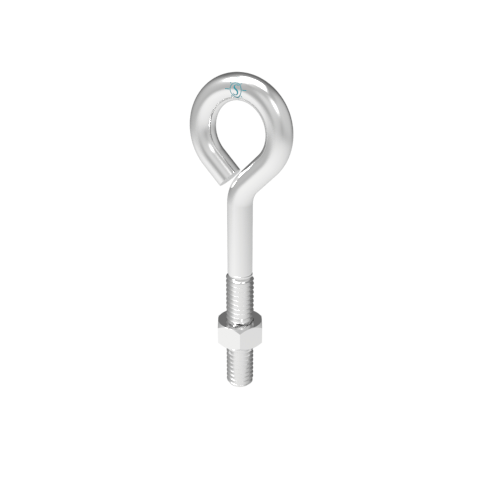

The Stainless Unwelded Eye Bolt features standard UNC threads and includes one nut. It comes in sizes from 3/16″ to 1/2″ to fit a wide range of projects. Made from 304 stainless steel, it resists corrosion and holds up in tough conditions. Use it in marine and industrial setups where strength and reliability matter.

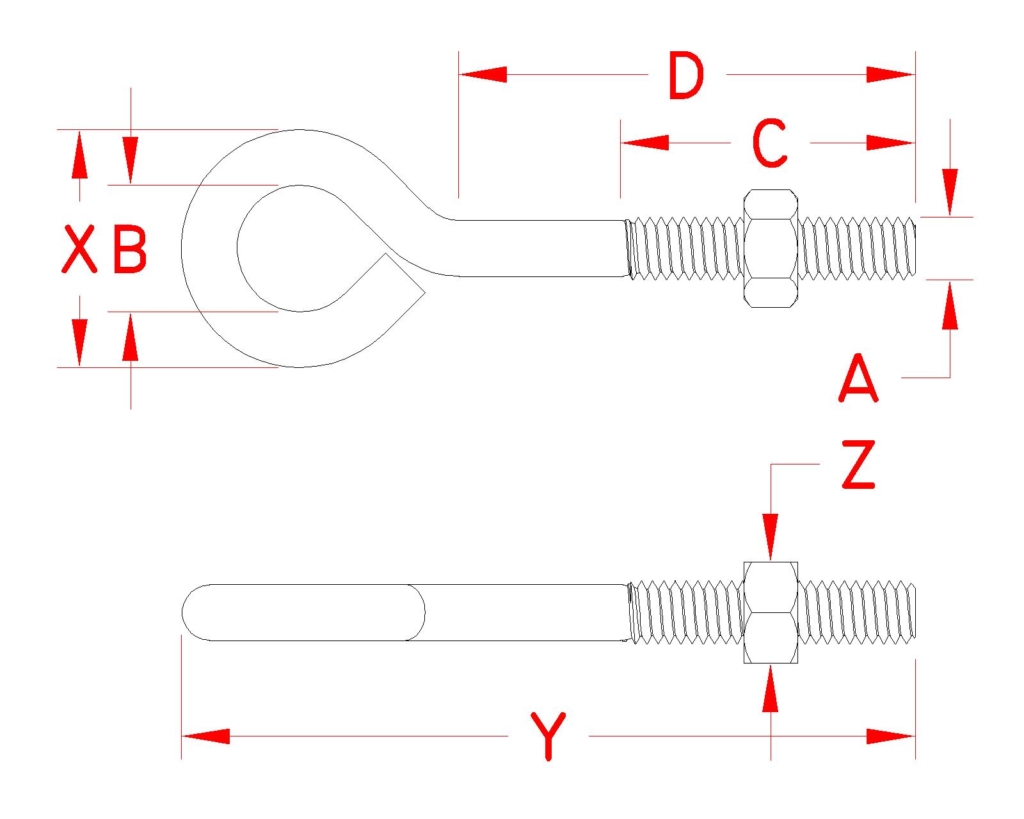

| ITEM | A (size) | B | C | D | THREAD (UNC) | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0310-05025 | 3/16″ | 0.38″ | 0.88″ | 1.00″ | 10-24 | 0.70″ | 1.75″ | 0.37″ | 100 | 0.02 | $1.21 |
|
|
| S0310-05050 | 3/16″ | 0.38″ | 1.00″ | 2.00″ | 10-24 | 0.70″ | 2.70″ | 0.37″ | 100 | 0.02 | $1.40 |
|
|
| S0310-05075 | 3/16″ | 0.38″ | 1.50″ | 3.00″ | 10-24 | 0.70″ | 3.75″ | 0.37″ | 100 | 0.03 | $1.53 |
|
|
| S0310-07025 | 1/4″ | 0.50″ | 0.88″ | 1.00″ | 1/4″-20 | 0.92″ | 2.00″ | 0.43″ | 200 | 0.04 | $1.49 |
|
|
| S0310-07038 | 1/4″ | 0.50″ | 1.25″ | 1.50″ | 1/4″-20 | 0.92″ | 2.55″ | 0.43″ | 200 | 0.04 | $1.22 |
|
|
| S0310-07050 | 1/4″ | 0.50″ | 1.25″ | 2.00″ | 1/4″-20 | 0.92″ | 3.00″ | 0.43″ | 200 | 0.05 | $1.71 |
|
|
| S0310-07075 | 1/4″ | 0.50″ | 1.50″ | 3.00″ | 1/4″-20 | 0.92″ | 4.00″ | 0.43″ | 200 | 0.06 | $1.99 |
|
|
| S0310-07100 | 1/4″ | 0.50″ | 2.50″ | 4.00″ | 1/4″-20 | 0.92″ | 4.95″ | 0.43″ | 200 | 0.07 | $2.22 |
|
|
| S0310-07125 | 1/4″ | 0.50″ | 3.00″ | 5.00″ | 1/4″-20 | 0.92″ | 5.95″ | 0.43″ | 200 | 0.08 | $2.43 |
|
|
| S0310-07150 | 1/4″ | 0.50″ | 4.00″ | 6.00″ | 1/4″-20 | 0.92″ | 6.95″ | 0.43″ | 200 | 0.09 | $2.77 |
|
|
| S0310-08013 | 5/16″ | 0.63″ | 0.38″ | 0.50″ | 5/16″-18 | 1.17″ | 1.88″ | 0.50″ | 350 | 0.06 | $2.23 |
|
|
| S0310-08025 | 5/16″ | 0.63″ | 0.88″ | 1.00″ | 5/16″-18 | 1.17″ | 2.25″ | 0.50″ | 350 | 0.07 | $2.65 |
|
|
| S0310-08050 | 5/16″ | 0.63″ | 1.25″ | 2.00″ | 5/16″-18 | 1.17″ | 3.25″ | 0.50″ | 350 | 0.09 | $2.58 |
|
|
| S0310-08075 | 5/16″ | 0.63″ | 1.50″ | 3.00″ | 5/16″-18 | 1.17″ | 4.25″ | 0.50″ | 350 | 0.10 | $2.89 |
|
|
| S0310-08100 | 5/16″ | 0.63″ | 2.50″ | 4.00″ | 5/16″-18 | 1.17″ | 5.25″ | 0.50″ | 350 | 0.12 | $3.25 |
|
|
| S0310-10025 | 3/8″ | 0.75″ | 0.88″ | 1.00″ | 3/8″-16 | 1.40″ | 2.50″ | 0.55″ | 500 | 0.12 | $3.61 |
|
|
| S0310-10050 | 3/8″ | 0.75″ | 1.25″ | 2.00″ | 3/8″-16 | 1.40″ | 3.50″ | 0.55″ | 500 | 0.15 | $3.71 |
|
|
| S0310-10075 | 3/8″ | 0.75″ | 1.50″ | 3.00″ | 3/8″-16 | 1.40″ | 4.50″ | 0.55″ | 500 | 0.17 | $4.18 |
|
|
| S0310-10100 | 3/8″ | 0.75″ | 2.50″ | 4.00″ | 3/8″-16 | 1.40″ | 5.50″ | 0.55″ | 500 | 0.19 | $4.69 |
|
|
| S0310-10125 | 3/8″ | 0.75″ | 3.00″ | 5.00″ | 3/8″-16 | 1.40″ | 6.50″ | 0.55″ | 500 | 0.22 | $5.15 |
|
|
| S0310-10150 | 3/8″ | 0.75″ | 4.00″ | 6.00″ | 3/8″-16 | 1.40″ | 7.50″ | 0.55″ | 500 | 0.24 | $5.67 |
|
|
| S0310-13050 | 1/2″ | 1.00″ | 1.50″ | 2.00″ | 1/2″-13 | 1.88″ | 4.00″ | 0.75″ | 1000 | 0.33 | $7.71 |
|
|
| S0310-13100 | 1/2″ | 1.00″ | 2.50″ | 4.00″ | 1/2″-13 | 1.88″ | 6.00″ | 0.75″ | 1000 | 0.40 | $9.37 |
|
|
| S0310-13150 | 1/2″ | 1.00″ | 4.00″ | 6.00″ | 1/2″-13 | 1.88″ | 8.00″ | 0.75″ | 1000 | 0.51 | $11.18 |
|
|
| S0310-16175 | 5/8″ | 0.75″ | 2.50″ | 7.00″ | 5/8″-11 | 1.80″ | 9.11″ | 0.94″ | 1400 | 0.86 | $19.03 |
|
|
| S0310-20175 | 3/4″ | 0.88″ | 3.00″ | 6.94″ | 3/4″-10 | 2.13″ | 9.50″ | 1.10″ | 2000 | 1.32 | $26.83 |
|
|
| S0310-20200 | 3/4″ | 0.88″ | 3.00″ | 8.94″ | 3/4″-10 | 2.13″ | 11.50″ | 1.10″ | 2000 | 1.53 | $29.27 |
|
|
| S0310-20300 | 3/4″ | 0.88″ | 3.00″ | 11.94″ | 3/4″-10 | 2.13″ | 14.50″ | 1.10″ | 2000 | 1.87 | $30.50 |
|
