Forged Jaw and Eye Turnbuckle
Forged Jaw and Eye Turnbuckle

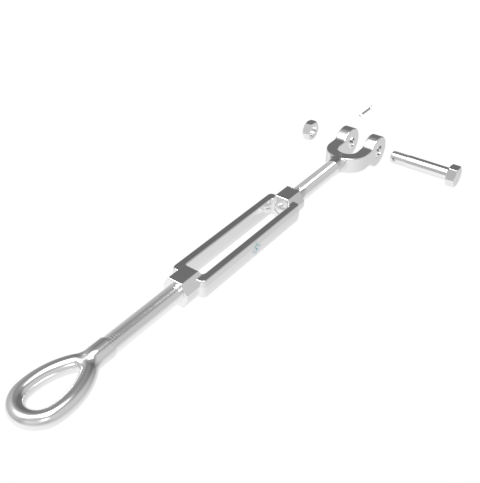

The Stainless Forged Jaw & Eye Turnbuckle features an open-body design. It comes in sizes from 1/4″ to 1-1/4″ to suit a variety of projects. Made from 316-NM stainless steel, it provides excellent corrosion resistance and long-lasting durability. Use it in marine and industrial applications that require secure and adjustable connections. This turnbuckle meets the WLL and dimensions of ASTM F1145-05 (2011), Type 1, Class H.
| ITEM | A(size) | B | C | D(adjustment) | E | F | G | H | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0109-JE07 | 1/4" | 0.33" | 0.25" | 4.00" | 0.64" | 0.75" | 11.10" | 7.88" | 1.57" | 8.42" | 0.51" | 500 | 0.34 | $34.00 |
|
|
| S0109-JE08 | 5/16" | 0.41" | 0.25" | 4.50" | 0.80" | 0.90" | 12.90" | 9.25" | 1.68" | 10.00" | 0.72" | 800 | 0.57 | $48.33 |
|
|
| S0109-JE10 | 3/8" | 0.50" | 0.31" | 6.00" | 0.88" | 1.07" | 15.60" | 11.00" | 1.92" | 12.00" | 0.92" | 1,200 | 0.84 | $72.23 |
|
|
| S0109-JE13 | 1/2" | 0.75" | 0.50" | 12.00" | 1.04" | 1.36" | 17.40" | 12.50" | 2.36" | 13.75" | 1.06" | 2,200 | 1.58 | $102.88 |
|
|
| S0109-JE16 | 5/8" | 0.87" | 0.50" | 6.00" | 1.37" | 1.73" | 20.25" | 14.00" | 2.86" | 15.50" | 1.34" | 3,500 | 2.62 | $162.92 |
|
|
| S0109-JE20 | 3/4" | 1.00" | 0.63" | 6.00" | 1.56" | 2.02" | 21.00" | 15.63" | 3.38" | 17.50" | 1.60" | 5,200 | 4.58 | $196.01 |
|
|
| S0109-JE25 | 1" | 1.38" | 0.88" | 6.00" | 2.18" | 3.00" | 23.00" | 19.00" | 4.52" | 21.75" | 2.13" | 8,000 | 10.00 | $436.37 |
|
|
| S0109-JE25-1 | 1" | 1.38" | 0.88" | 12.00" | 2.21" | 3.06" | 35.50" | 25.00" | 4.43" | 27.50" | 2.06" | 12,500 | 12.63 | $644.40 |
|
|
| S0109-JE32-1 | 1/4" | 1.71" | 1.13" | 12.00" | 2.87" | 3.36" | 38.25" | 27.50" | 4.50" | 30.00" | 2.13" | 12,500 | 20.00 | $1,006.88 |
|
