Metric Shoulder Eye Bolt
Metric Shoulder Eye Bolt

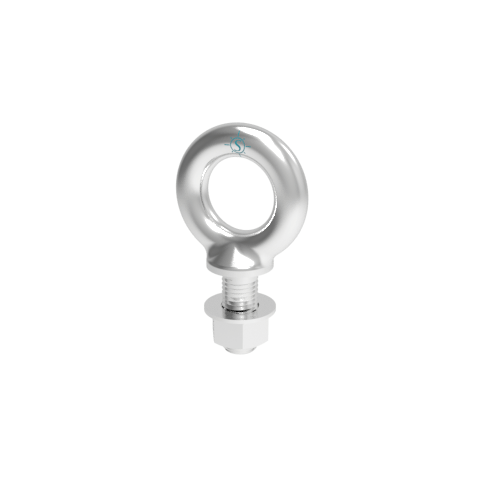

This Metric Shoulder Eye Bolt delivers strength, precision, and reliability. Forged markings clearly show the size, 316-NM stainless steel grade, and Working Load Limit (WLL) in tons. Machined shaft and shoulder underside ensure a perfect fit and flush seating. It uses metric threads for compatibility with international standards. Each bolt includes one nut and washer, with extras available from stock.

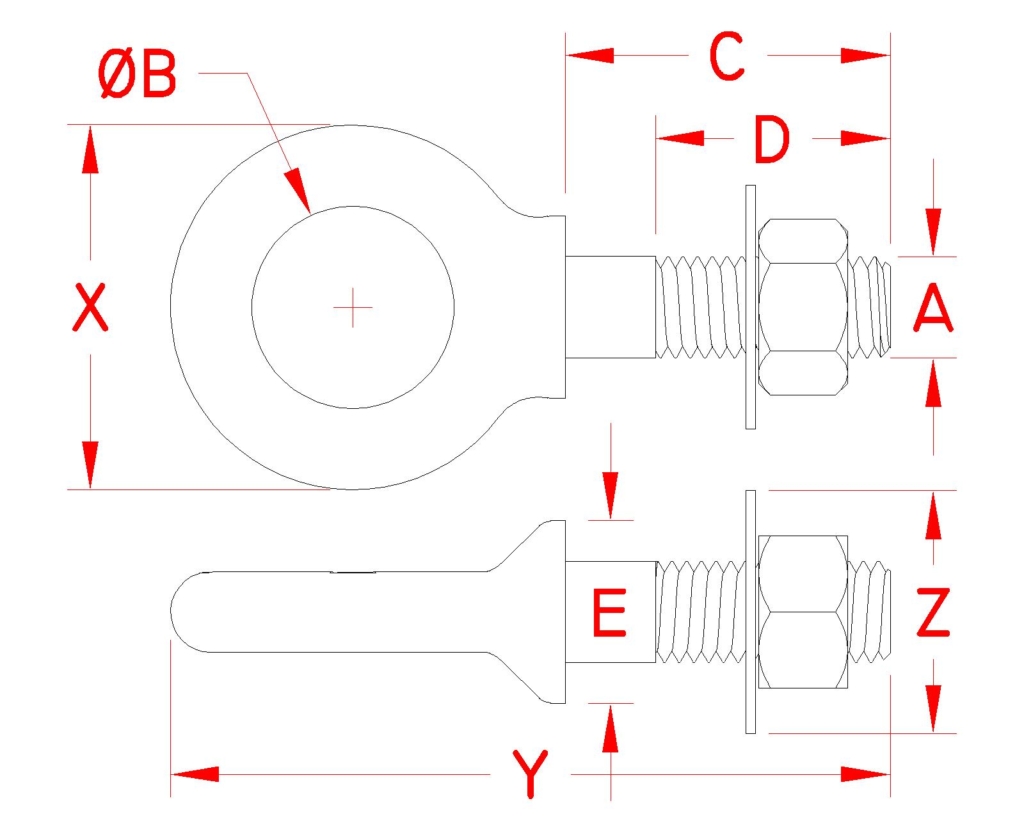

| ITEM | A (size) | B | C | D | E | X | Y | Z | WLL (lb) | WT (lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0314-0705M | M6 | 0.50″ | 2.00″ | 1.50″ | 0.50″ | 0.91″ | 3.05″ | 0.46″ | 500 | 0.05 | $7.39 |
|
|
| S0314-0710M | M6 | 0.50″ | 4.00″ | 2.50″ | 0.50″ | 0.91″ | 5.00″ | 0.46″ | 500 | 0.07 | $7.94 |
|
|
| S0314-0803M | M8 | 0.63″ | 1.38″ | 0.38″ | 0.56″ | 1.19″ | 2.73″ | 0.61″ | 800 | 0.11 | $9.09 |
|
|
| S0314-0806M | M8 | 0.63″ | 2.25″ | 1.50″ | 0.56″ | 1.19″ | 3.62″ | 0.61″ | 800 | 0.11 | $9.09 |
|
|
| S0314-0810M | M8 | 0.63″ | 4.25″ | 2.50″ | 0.56″ | 1.19″ | 5.65″ | 0.61″ | 800 | 0.16 | $14.28 |
|
|
| S0314-1002M | M10 | 0.75″ | 0.75″ | 0.75″ | 0.66″ | 1.40″ | 2.34″ | 0.74″ | 1,200 | 0.16 | $12.88 |
|
|
| S0314-1003M | M10 | 0.75″ | 1.50″ | 1.00″ | 0.66″ | 1.40″ | 3.10″ | 0.74″ | 1,200 | 0.18 | $13.54 |
|
|
| S0314-1006M | M10 | 0.75″ | 2.50″ | 1.50″ | 0.66″ | 1.40″ | 4.02″ | 0.74″ | 1,200 | 0.20 | $13.73 |
|
|
| S0314-1012M | M10 | 0.75″ | 4.50″ | 2.50″ | 0.66″ | 1.40″ | 6.03″ | 0.74″ | 1,200 | 0.26 | $18.78 |
|
|
| S0314-1304M | M12 | 1.00″ | 1.50″ | 1.00″ | 0.88″ | 1.80″ | 3.47″ | 0.92″ | 2,150 | 0.31 | $21.79 |
|
|
| S0314-1308M | M12 | 1.00″ | 3.25″ | 1.50″ | 0.88″ | 1.80″ | 5.25″ | 0.92″ | 2,150 | 0.40 | $32.48 |
|
|
| S0314-1315M | M12 | 1.00″ | 6.00″ | 3.00″ | 0.88″ | 1.80″ | 8.00″ | 0.92″ | 2,150 | 0.52 | $36.39 |
|
|
| S0314-1603M | M16 | 1.25″ | 1.00″ | 0.75″ | 1.13″ | 2.28″ | 3.45″ | 1.17″ | 3,440 | 0.56 | $55.84 |
|
|
| S0314-1605M | M16 | 1.25″ | 2.00″ | 1.75″ | 1.13″ | 2.28″ | 4.40″ | 1.17″ | 3,440 | 0.64 | $58.44 |
|
|
| S0314-1610M | M16 | 1.25″ | 4.00″ | 2.00″ | 1.13″ | 2.28″ | 6.55″ | 1.17″ | 3,440 | 0.82 | $65.20 |
|
|
| S0314-1615M | M16 | 1.25″ | 6.00″ | 3.00″ | 1.13″ | 2.28″ | 8.50″ | 1.17″ | 3,440 | 0.99 | $72.96 |
|
|
| S0314-2003M | M18 | 1.50″ | 1.00″ | 1.00″ | 1.31″ | 2.76″ | 4.05″ | 1.33″ | 5,140 | 0.94 | $78.92 |
|
|
| S0314-2005M | M18 | 1.50″ | 2.00″ | 1.75″ | 1.31″ | 2.76″ | 5.10″ | 1.33″ | 5,140 | 1.05 | $92.84 |
|
|
| S0314-2012M | M18 | 1.50″ | 4.50″ | 2.00″ | 1.31″ | 2.76″ | 7.60″ | 1.33″ | 5,140 | 1.31 | $98.74 |
|
|
| S0314-2015M | M18 | 1.50″ | 6.00″ | 3.00″ | 1.31″ | 2.76″ | 9.05″ | 1.33″ | 5,140 | 1.48 | $135.40 |
|
|
| S0314-2213M | M20 | 1.75″ | 5.00″ | 2.50″ | 1.75″ | 3.23″ | 8.65″ | 1.72″ | 7,130 | 2.05 | $178.30 |
|
|
| S0314-2504M | M24 | 2.00″ | 1.38″ | 1.38″ | 1.83″ | 3.77″ | 5.35″ | 1.82″ | 9,370 | 2.46 | $140.28 |
|
|
| S0314-2506M | M24 | 2.00″ | 2.50″ | 2.25″ | 1.83″ | 3.77″ | 6.45″ | 1.82″ | 9,370 | 2.61 | $185.80 |
|
|
| S0314-2515M | M24 | 2.00″ | 6.00″ | 3.00″ | 1.83″ | 3.77″ | 9.92″ | 1.82″ | 9,370 | 3.22 | $254.73 |
|
