Pad Eye
Pad Eye
The Stainless Pad Eye comes in a wide range of sizes from 3/16″ to 3/4″, making it a versatile choice for marine, industrial, architectural, OEM, and government applications. The machined underside ensures a perfect seating, while the working load limit depends on the quality of welding and the strength of the attachment structure.

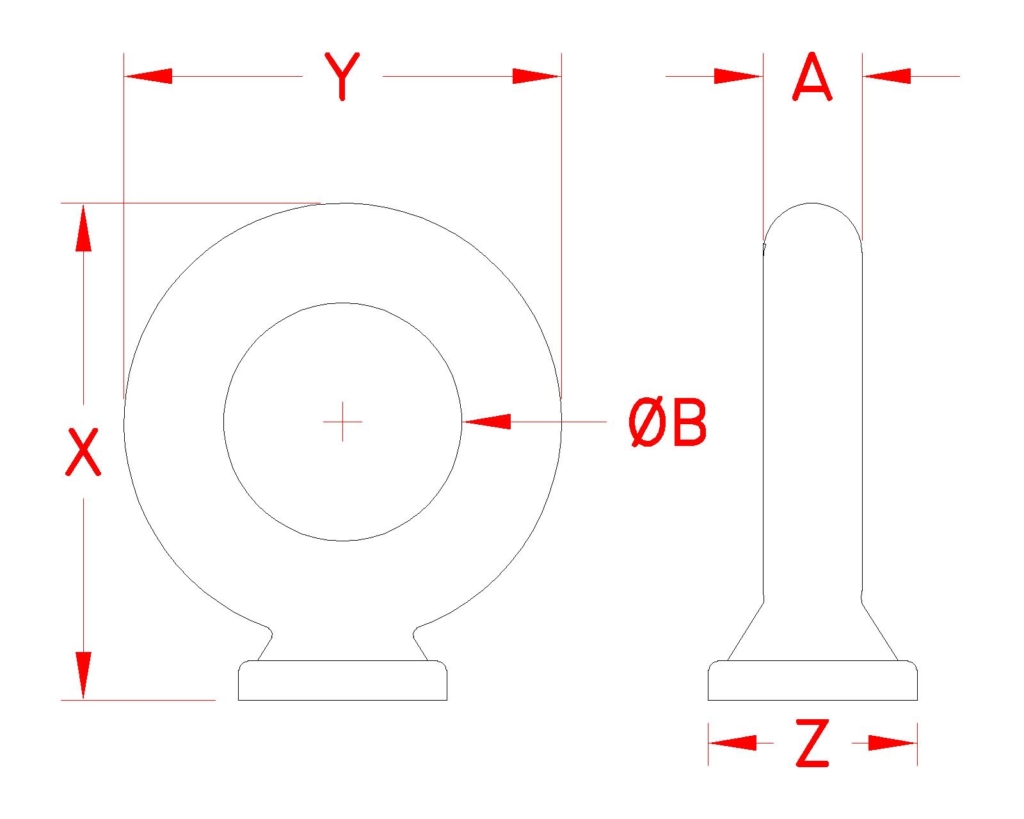

| ITEM | A(size) | B | X | Y | Z | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
| S0324-0005 | 3/16" | 0.50" | 1.06" | 0.90" | 0.38" | 0.03 | $4.87 |
|
|
| S0324-0007 | 1/4" | 0.63" | 1.31" | 1.15" | 0.56" | 0.06 | $6.91 |
|
|
| S0324-0008 | 5/16" | 0.75" | 1.56" | 1.40" | 0.63" | 0.10 | $8.50 |
|
|
| S0324-0010 | 3/8" | 1.00" | 2.00" | 1.75" | 0.87" | 0.21 | $15.86 |
|
|
| S0324-0013 | 1/2" | 1.25" | 2.50" | 2.25" | 1.00" | 0.38 | $21.46 |
|
|
| S0324-0016 | 5/8" | 1.50" | 3.25" | 2.75" | 1.38" | 0.80 | $43.13 |
|
|
| S0324-0020 | 3/4" | 1.75" | 3.78" | 3.25" | 1.80" | 1.46 | $76.33 |
|
