Rope Sheave - Bearings
Rope Sheave - Bearings

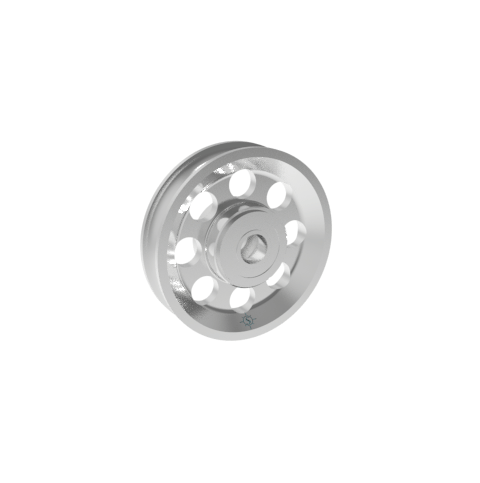

The Stainless Rope Sheave fits rope sizes from 1/4″ to 5/8″. It features two high-quality, shielded stainless steel bearings for smooth and reliable operation. Made from 316 stainless steel, this sheave resists corrosion and holds up in harsh environments. It’s an excellent choice for marine and industrial rigging applications where strength and long-term performance matter.
| ITEM | A(rope size) | B(bore) | C(rim width) | D | X | Y | Z | WLL(lb) | WT(lb) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0411-0707 | 1/4" | 1/4" | 0.38" | 1.00" | 0.53" | 1.25" | 1.25" | 300 | 0.08 | $46.45 |
|
|
| S0411-1010 | 3/8" | 3/8" | 0.56" | 1.88" | 0.81" | 2.25" | 2.25" | 1,000 | 0.27 | $63.25 |
|
|
| S0411-1313 | 1/2" | 1/2" | 0.72" | 2.75" | 0.94" | 3.25" | 3.25" | 1,200 | 0.60 | $100.84 |
|
|
| S0411-1616 | 5/8" | 5/8" | 0.94" | 3.63" | 1.07" | 4.25" | 4.25" | 2,500 | 1.38 | $136.48 |
|
