Surface Mount Block (Rope)
Surface Mount Block (Rope)

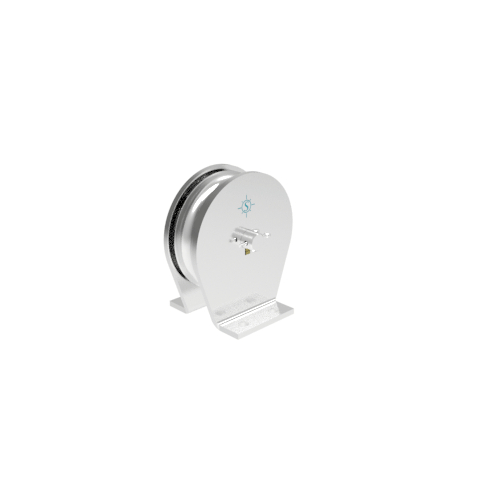

The Stainless Surface Mount Block fits rope sizes from 3/8″ to 5/8″ and mounts securely using four fasteners. Its precision-cast stainless steel body offers lasting strength, while the bronze bushing provides smooth, consistent performance. This block is built for marine and industrial rigging where reliability and durability matter most.
| ITEM | A | B(rope size) | C | D | E | F(fastener) | X | Y | Z | WLL(lb) | WT(lb) | Sheave(part #) | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0420-0050-R | 2.25" | 3/8" | 1.88" | 1.72" | 0.88" | 3/16" | 2.75" | 2.50" | 2.20" | 1,000 | 0.91 | S0410-1010 | $106.27 |
|
|
| S0420-0075-R | 3.25" | 1/2" | 2.75" | 2.30" | 1.12" | 1/4" | 4.00" | 3.50" | 2.95" | 1,500 | 1.93 | S0410-1313 | $154.10 |
|
|
| S0420-0100-R | 4.25" | 5/8" | 3.63" | 2.55" | 1.50" | 3/8" | 5.25" | 4.50" | 3.35" | 3,000 | 4.05 | S0410-1616 | $226.91 |
|
